Woven Label Size Chart (mm & inches): Standard Sizes for Clothing Brands

Choosing the right woven label size isn’t just a design decision — it directly impacts readability, comfort, durability, and how “premium” your brand feels.

If you want a fast answer, start with the chart below. Then use the sections that match your garment type and placement.

Quick Size Chart: Recommended Starting Sizes

Use these dimensions as practical starting points, not fixed industry standards. Sizes are shown as Width × Height in the final installed orientation and refer to the recommended visible label face unless stated otherwise.

Folded labels may require a larger flat or cut size because extra material is needed for folds and sewing allowances.

Main neck label:
50 × 25 mm
(1.97 × 0.98 in)
Wide neck or hoodie label:
60 × 20–25 mm
(2.36 × 0.79–0.98 in)
Side seam or hem label:
38–50 × 13–15 mm
(1.50–1.97 × 0.51–0.59 in)
Babywear or small-item label:
35–40 × 10–15 mm
(1.38–1.57 × 0.39–0.59 in)
Statement accessory or bag label:
50–70 × 20–25 mm
(1.97–2.76 × 0.79–0.98 in)

These are starting points only. The best size also depends on your logo proportions, text detail, garment placement, fold type, and sewing method. We confirm the final production dimensions on your digital proof before production.

Need a size recommendation for your logo?
Send your logo, garment type, label placement, and fold type. We’ll suggest a practical woven label size that stays readable and comfortable before production.

Preset Straight-Cut Options

Looking for a Simpler, More Affordable Woven Label Option?

UPPERLABELS offers three preset straight-cut woven label sizes for easier ordering and more affordable pricing. These fixed-size options are ideal when you do not need custom dimensions or folded edges.

✓ Three preset sizes: 60 × 15 mm, 60 × 20 mm, and 70 × 25 mm
✓ Straight-cut construction with no folded edges
✓ More affordable than fully custom folded woven labels

Need custom dimensions or a folded label? Continue with the size guide below or send us your artwork for a recommendation.

View Fixed-Size Options Get a Custom Size Recommendation

Woven Label Size Reference by Placement

Recommended starting sizes for the visible label face. Dimensions are shown as Width × Height.

Label Type	Recommended Visible Size	Quick Note
Main Neck Label	50 × 25 mm 1.97 × 0.98 in	Everyday neck branding
Wide Neck or Hoodie Label	60 × 20–25 mm 2.36 × 0.79–0.98 in	Wider logos or more text
Side Seam or Hem Label	38–50 × 13–15 mm 1.50–1.97 × 0.51–0.59 in	Compact branding areas
Babywear or Small-Item Label	35–40 × 10–15 mm 1.38–1.57 × 0.39–0.59 in	Simple artwork and small products
Accessory or Bag Label	50–70 × 20–25 mm 1.97–2.76 × 0.79–0.98 in	Larger or more visible branding

Note: folded labels may need a larger flat or cut size. Final dimensions depend on the fold, sewing allowance, and artwork layout.

Visible Size vs. Finished Size vs. Flat / Cut Size

These measurements describe different stages of the same woven label. Confirming which measurement you are using helps prevent sizing errors before production.

Visible Size

The design area that remains visible after the label is sewn into the garment. Hidden folds and seam-insertion areas are not included.

Finished Size

The label’s final outer dimensions after cutting and folding. Specifications should state whether this means finished flat size or finished folded size.

Flat / Cut Size

The full production size before folding. It may include extra material for fold allowances and areas that will be sewn into the garment seam.

How the measurements relate

Flat / cut size → finished folded size → installed visible size. For straight-cut labels, these measurements may be similar. For folded labels, the full flat size is normally larger than the visible face.

Compare woven label fold types →

Need Help Choosing the Right Size?

Not Sure Which Woven Label Size Fits Your Product?

Choosing the right size depends on where the label will be sewn, how much text or logo detail you need, and which fold type you plan to use. If you are unsure, we can help you start with a practical size before production.

✓ Low MOQ options available
✓ Free digital proof before production
✓ Help with size, fold, and finish selection

Get a Free Quote Explore Custom Woven Labels

Why Woven Label Size Matters

The right size should give your artwork enough space while remaining comfortable and practical for the garment.

Clearer Artwork

Enough visible space helps small text, thin lines, and logo details remain easier to read.

Better Comfort

Neck and side-seam labels should stay proportionate to the fabric weight and placement area.

Better Production Fit

The size must leave suitable space for the artwork, fold, sewing area, and final garment construction.

Adjust the Label Size by Garment Type

Start with the placement chart above, then adjust the size for the garment weight, available space, and artwork detail.

T-Shirts & Lightweight Apparel

Use a balanced neck label or compact side-seam label. Prioritize comfort, simple artwork, and a size that does not feel bulky.

Hoodies, Jackets & Heavy Fabrics

Heavier garments can support wider branding. A visible size around 60 × 20–25 mm is a practical starting point for many neck labels.

Babywear & Small Garments

Keep the label compact and the artwork simple. A visible size around 35–40 × 10–15 mm is a useful starting range.

Bags, Accessories & Handmade Items

These products often allow more visible branding. Start around 50–70 × 20–25 mm, then adjust to the product shape and placement.

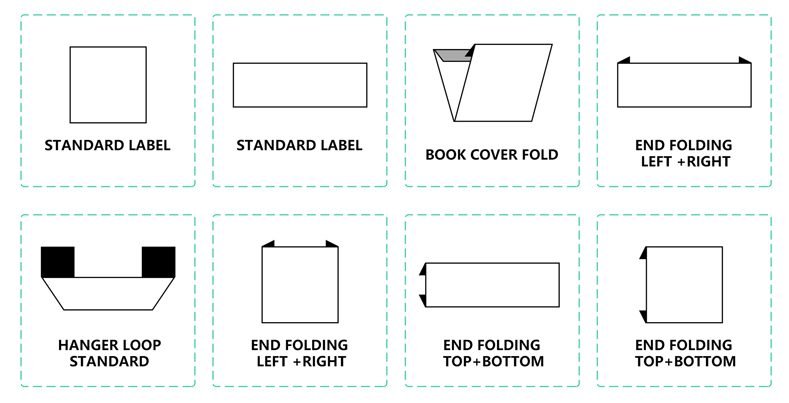

How Fold Type Changes the Production Size

Folded labels usually need more material than the visible label face. The full flat or cut size depends on the selected fold and sewing method.

Straight cut: the finished and visible sizes are often similar, apart from any sewing area.
End fold: extra width is added so both ends can fold behind the visible face.
Center fold: the flat size includes both sides of the folded label.

Choose the visible size first. UPPERLABELS will confirm the full production dimensions, fold allowance, and sewing area on the digital proof.

Compare all woven label fold types →

Common Woven Label Sizing Mistakes

Avoid these common specification errors before approving your production proof.

Confusing Visible Size with Flat Size

A folded label’s full cut size can be larger than the design area visible after installation.

Choosing the Size Before the Fold

Select the visible face first, then confirm the fold, sewing area, and full production size.

Making Detailed Artwork Too Small

Fine text, thin lines, and complex logos need enough usable space to remain clear.

Placing Content in the Sewing Area

Keep important text and logo details away from folds, stitch lines, and hidden seam areas.

Final Size & Artwork Check

Confirm these details before approving your woven label for production.

Visible size: confirm Width × Height in the final installed orientation.

Fold and sewing area: confirm which parts will be folded or hidden in the seam.

Artwork clarity: keep important text and logo details inside the safe area.

Artwork file: provide vector artwork where possible for cleaner production.

Need detailed washing or fiber information? Use a separate Care Label instead of fitting everything into one small woven label. Final production dimensions will be confirmed on your digital proof.

Ready for the Next Step?

Send Your Artwork for a Size Recommendation

Share your logo, garment placement, preferred fold, or approximate dimensions. We’ll review the details and recommend a practical starting specification before the digital proof.

✓ Upload your logo or artwork
✓ Tell us the garment type and label placement
✓ Add your preferred fold or approximate visible size
✓ Review the final production dimensions on your digital proof

Get a Size Recommendation View Custom Woven Labels

FAQ: Woven Label Sizes

What is the most common woven label size for clothing?

There is no single official standard size. For a main neck label, a visible size around 50 × 25 mm (1.97 × 0.98 in) is a practical starting point for many clothing brands. The best size still depends on your logo proportions, garment placement, fold type, and sewing method.

Can I make a woven label very small?

Yes, but a very small visible area may reduce the clarity of fine text, thin lines, and detailed logos. Simplifying the artwork or choosing a slightly larger size usually gives cleaner results. We review the final layout on the digital proof before production.

What is the difference between visible size and flat / cut size?

Visible size is the design area that remains visible after the label is installed. Flat or cut size is the full production size before folding and may include extra material for fold allowances or seam insertion. For folded labels, the flat size is normally larger than the visible face.

What details should I send for a woven label size recommendation?

Send your logo or artwork, garment type, label placement, preferred fold, approximate visible size, and any text that must appear on the label. We can then recommend a practical starting specification and confirm the final production dimensions on the digital proof.

Should I use the same size for all garments?

Usually not. Lightweight T-shirts, hoodies, babywear, side seams, and accessories have different space and comfort requirements. Start with the placement chart, then adjust the size for the garment weight, artwork detail, and intended branding effect.

Does fold type affect my final size?

Yes. A fold can change the full flat or cut size even when the visible face stays the same. End folds need extra material at the sides, while center folds include both sides of the folded label. The fold allowance and full production size will be confirmed on the digital proof.

How much sewing allowance does a woven label need?

The required allowance depends on the fold, seam construction, and stitching method. For straight-cut sew-on labels, keeping critical artwork about 3–6 mm away from the stitch area is a practical starting point. The exact sewing and fold allowances should always be confirmed on the production proof.
